Sr. No. |
Lamp Description |
Wattage |
Available Voltages |
Lux Level |
Lamp Length |
|
1 |
PL-CNC-9 LED LAMP |
0.2W X 42 LED |
8 W |
24VDC / 230VAC |
180 LUX |
325 MM |
2 |
PL-CNC-11 LED LAMP |
0.2W X 42 LED |
8 W |
24VDC / 230VAC |
180 LUX |
360 MM |
3 |
PL-CNC-18 LED LAMP |
0.2W X 63 LED |
12 W |
24VDC / 230VAC |
200 LUX |
485 MM |
4 |
PL-CNC-36 LED LAMP |
0.2W X 84 LED |
16 W |
24VDC / 230VAC |
300 LUX |
550 MM |
5 |
PL-CNC-55 LED LAMP |
0.2W X 105 LED |
20 W |
24VDC / 230VAC |
560 LUX |
760 MM |
6 |
6 LED CNC LAMP |
1W X 6 LED |
7.2 W |
24VDC-AC / 110VAC / 230VAC |
370 LUX |
360 MM |
7 |
8 LED CNC LAMP |
1W X 8 LED |
9.6 W |
24VDC-AC / 110VAC / 230VAC |
430 LUX |
485 MM |
8 |
12 LED CNC LAMP |
1W X 12 LED |
14.4 W |
24VDC-AC / 230VAC |
630 LUX |
585 MM |
9 |
4 LED X 2 CNC LAMP |
1W X 8 LED |
9.6 W |
24VDC-AC /110VAC/ 230VAC |
750 LUX |
360 MM |
10 |
6 LED X 2 CNC LAMP |
1W X 12 LED |
14.4. W |
24VDC-AC / 110VAC / 230VAC |
800 LUX |
485 MM |
11 |
8 LED X 2 CNC LAMP |
1W X 16 LED |
19.2 W |
24VDC-AC /110VAC / 230VAC |
890 LUX |
550 MM |
12 |
12 LED X 2 CNC LAMP |
1W X 24 LED |
28.8 W |
24VDC-AC / 230VAC |
1325 LUX |
760 MM |
13 |
8 LED WALL/BASE MOUNTINGLAMP |
1W X 8 LED |
9.6 W |
24VDC-AC / 110VAC / 230VAC |
750 LUX |
|
14 |
12 LED WALL/BASE MOUNTING LAMP |
1W X 12 LED |
14.4. W |
24VDC-AC / 110 VAC / 230VAC |
1000 LUX |
|
Note : Lux Level at 1 meter distance.
SPECIFICATIONS |
|
LED MAKE |
MIC 2835UW-B5-8-3 |
LED WATTAGE |
0.2W |
LAMP WATTAGE |
8W |
NUMBER OF LEDS |
42 |
INPUT VOLTAGES |
24VDC / 230VAC |
LUMENS |
1176 LUMENS (28lm/LED) |
LUX LEVEL |
180 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
325MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

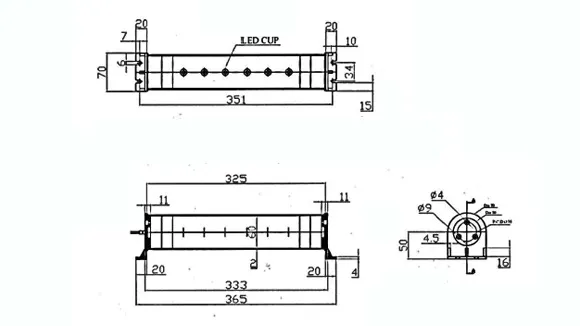

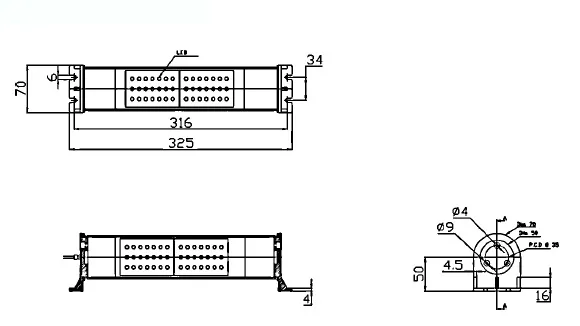

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
MIC 2835UW-B5-8-3 |
LED WATTAGE |
0.2W |
LAMP WATTAGE |
8W |
NUMBER OF LEDS |
42 |
INPUT VOLTAGES |
24VDC / 230VAC |
LUMENS |
1176 LUMENS (28lm/LED) |
LUX LEVEL |
180 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
360MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

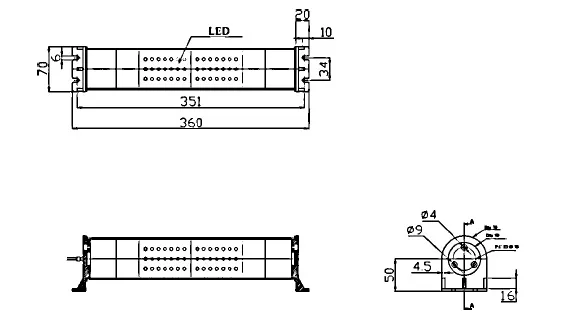

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
MIC 2835UW-B5-8-3 |
LED WATTAGE |
0.2W |
LAMP WATTAGE |
12W |
NUMBER OF LEDS |
63 |
INPUT VOLTAGES |
24VDC/230VAC |
LUMENS |
1764 LUMENS (28lm/LED) |
LUX LEVEL |
200LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
485MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

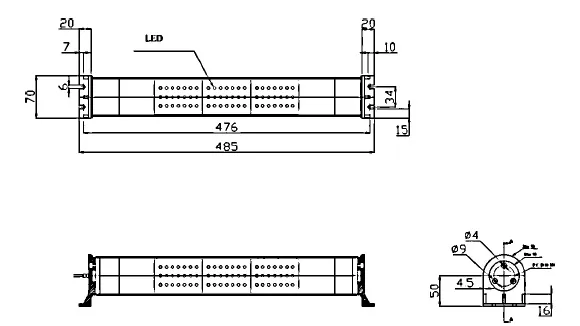

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
MIC 2835UW-B5-8-3 |
LED WATTAGE |
0.2W |
LAMP WATTAGE |
16W |
NUMBER OF LEDS |
84 |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUMENS |
2352 LUMENS (28lm/LED) |
LUX LEVEL |
300 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
550MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

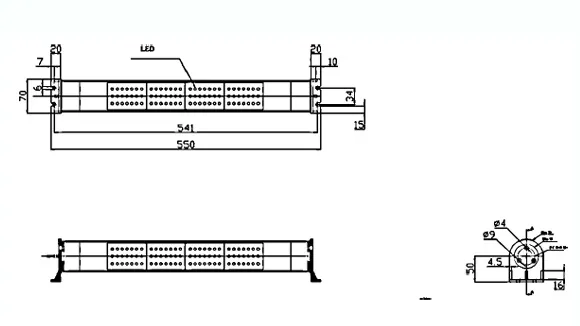

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
MIC 2835UW-B5-8-3 |
LED WATTAGE |
0.2W |
LAMP WATTAGE |
20W |
NUMBER OF LEDS |
105 |
INPUT VOLTAGES |
24VDC/230VAC |
LUMENS |
2940 LUMENS (28lm/LED) |
LUX LEVEL |
560LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
760MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

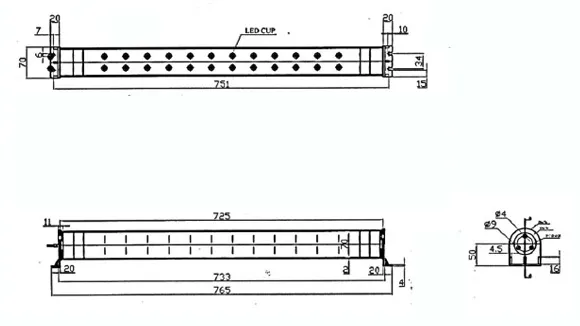

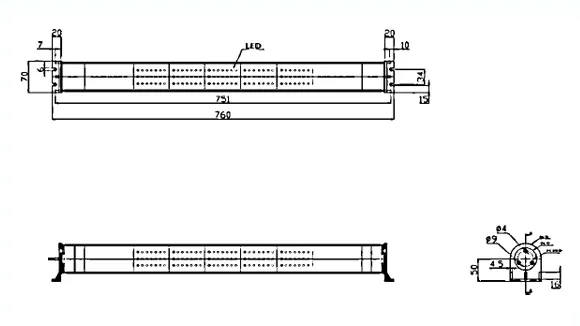

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
1 W |
LAMP WATTAGE |
7.2W |
NUMBER OF LEDS |
6 |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
964 LUMENS (164 lm/LED) |
LUX LEVEL |
370LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
360MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67 waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.
DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
12 W |
LAMP WATTAGE |
9.6W |
NUMBER OF LEDS |
8 |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
1312 LUMENS (164 lm/LED) |
LUX LEVEL |
430LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
485MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

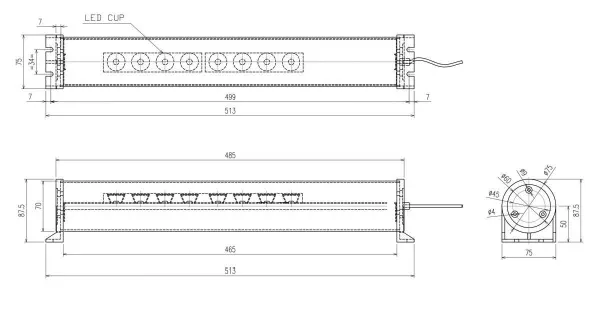

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
1 W |
LAMP WATTAGE |
14.4 W |
NUMBER OF LEDS |
12 |
INPUT VOLTAGES |
24VDC/230VAC |
LUMINOUS EFFICACY |
1968 LUMENS (164 lm/LED) |
LUX LEVEL |
630LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M60/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
585MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

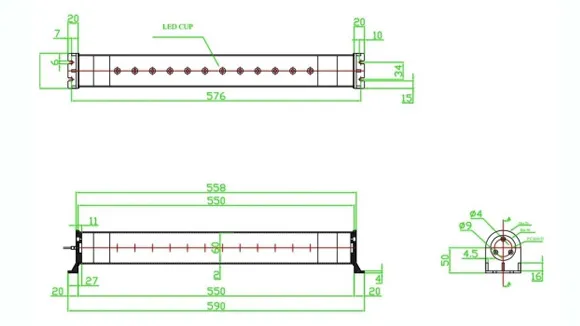

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
1 W |
LAMP WATTAGE |
9.6W |
NUMBER OF LED |
8 |
INPUT VOLTAGE |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
1312 LUMENS (164 lm/LED) |
LUX LEVEL |
750LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M70/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
360MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.
DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
1 W |
LAMP WATTAGE |
12W |
NUMBER OF LED |
12 |
INPUT VOLTAGE |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
1968 LUMENS 164 lm/LED |
LUX LEVEL |
800 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M70/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
485MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

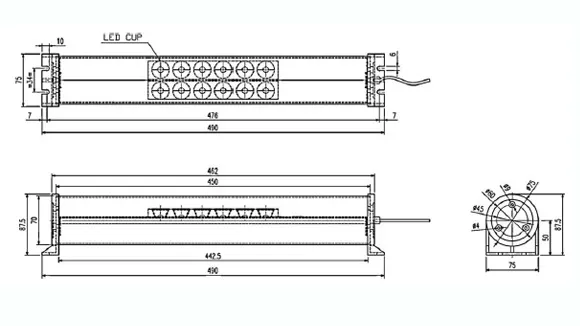

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM – GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
19.2W |
NUMBER OF LEDS |
16 |
INPUT VOLTAGES |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
2624 LUMENS (164 lm/LED) |
LUX LEVEL |
890LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M70/3.2MM |
MOUNTING BRACKET/ ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
P67 |
LAMP LENGTH |
550MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.

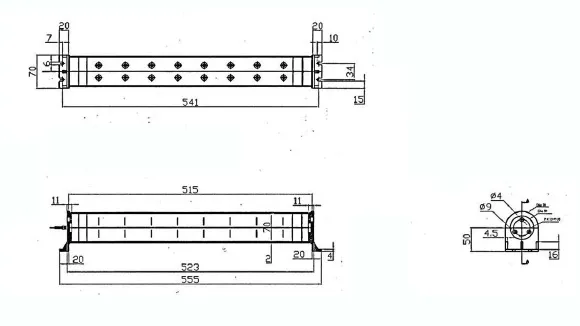

DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1W |
LAMP WATTAGE |
28.8W |
NUMBER OF LED |
24 |
INPUT VOLTAGE |
24VDC/230VAC |
LUMINOUS EFFICACY |
3936 LUMENS (164 lm/LED) |
LUX LEVEL |
1325 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
GLASS |
BOROCILATE, M70/3.2MM |
MOUNTING BRACKET / ENCLOSER |
NYLON 6 BLACK |
PROTECTION |
IP67 |
LAMP LENGTH |
760MM |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, Leak testing machines.
- LED CNC Machine lamp is IP67 waterproof, oil proof, coolant Proof.
- Lamp can be rotate 3600.
- Provided NYLON 6 BLACK mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.
DIMENTIONAL DRAWING
ALL DIMENSIONS IN MM
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1 W |
LAMP WATTAGE |
9.6 W |
NUMBER OF LED |
8 |
INPUT VOLTAGE |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
1312 LUMENS (164 lm/LED) |
LUX LEVEL |
750 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
MOUNTING BRACKET/ ENCLOSER |
GLASSFILED NYLON BLACK |
PROTECTION |
IP65 |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, machines.
- LED CNC Machine lamp is IP65 waterproof, oil proof, coolant Proof.
- Provided L Type mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.
SPECIFICATIONS |
|
LED MAKE |
OSRAM - GW PSLT33 |
LED WATTAGE |
1 W |
LAMP WATTAGE |
14.4 W |
NUMBER OF LED |
12 |
INPUT VOLTAGE |
24VDC/110VAC/230VAC |
LUMINOUS EFFICACY |
1968 LUMENS (164 lm/LED) |
LUX LEVEL |
1000 LUX @ 1 METER |
EXPECTED LIFE |
40000hrs. |
MOUNTING BRACKET/ ENCLOSER |
GLASSFILED NYLON BLACK |
PROTECTION |
IP65 |
FEATURES
- LED CNC machine lamp used in application of CNC, VMC, machines.
- LED CNC Machine lamp is IP65 waterproof, oil proof, coolant Proof.
- Provided L Type mounting brackets.
- Designed to working very harsh condition.
- Defused POLYCARBONATE for GLARE FREE LIGHT
- Available in different Input voltages.
Product Gallery
